WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1350
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 450 Mbps (802.11n)
WiFi Range 3 Bedroom Houses

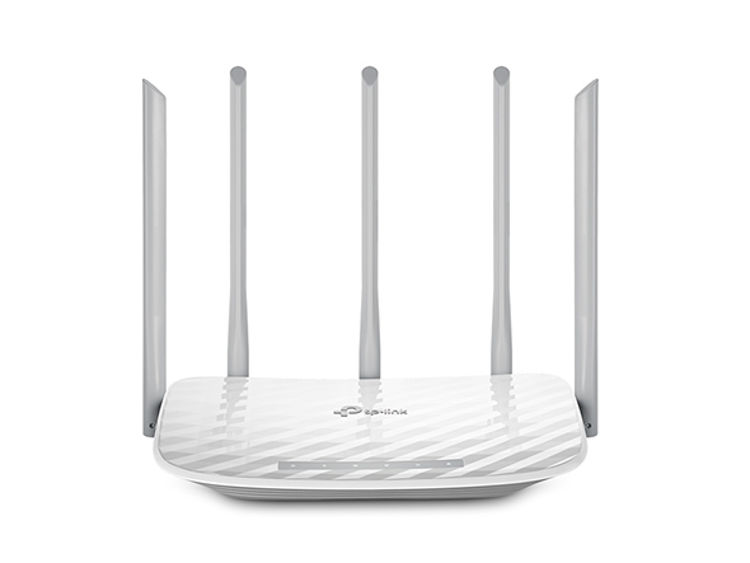

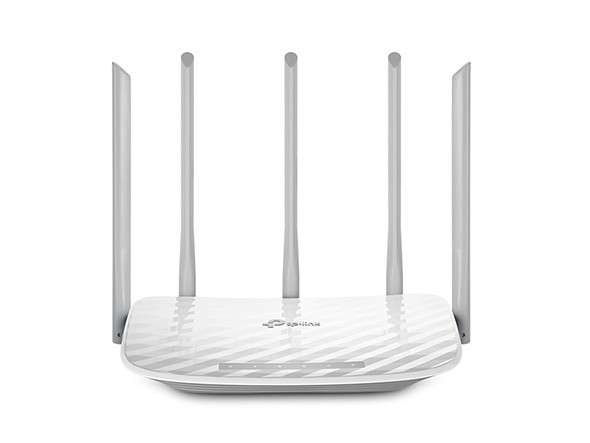

5× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor Qualcomm CPU
Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons Wi-Fi On/Off Button
Power On/Off Button
WPS/Reset Button
Power 12 V ? 1 A
SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 9.1 × 5.7 × 1.5 in
(230 × 144 × 37 mm)
Package Contents Wi-Fi Router Archer C60
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity 5GHz:
11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;
