HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Power Consumption 10W
Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Reception Sensitivity 5 GHz:
11ax HE80 MCS0: -87dBm, 11ax HE80 MCS11: -56dBm
11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm
11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power CE: 2.4 GHz ≤15dBm, 5 GHz ≤21dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA-PSK2 encryptions
OTHERS

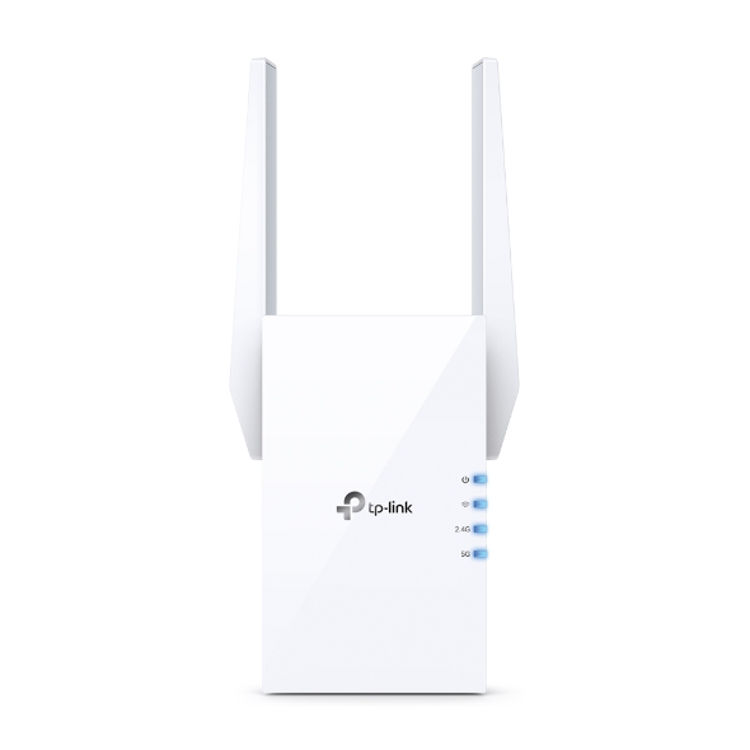

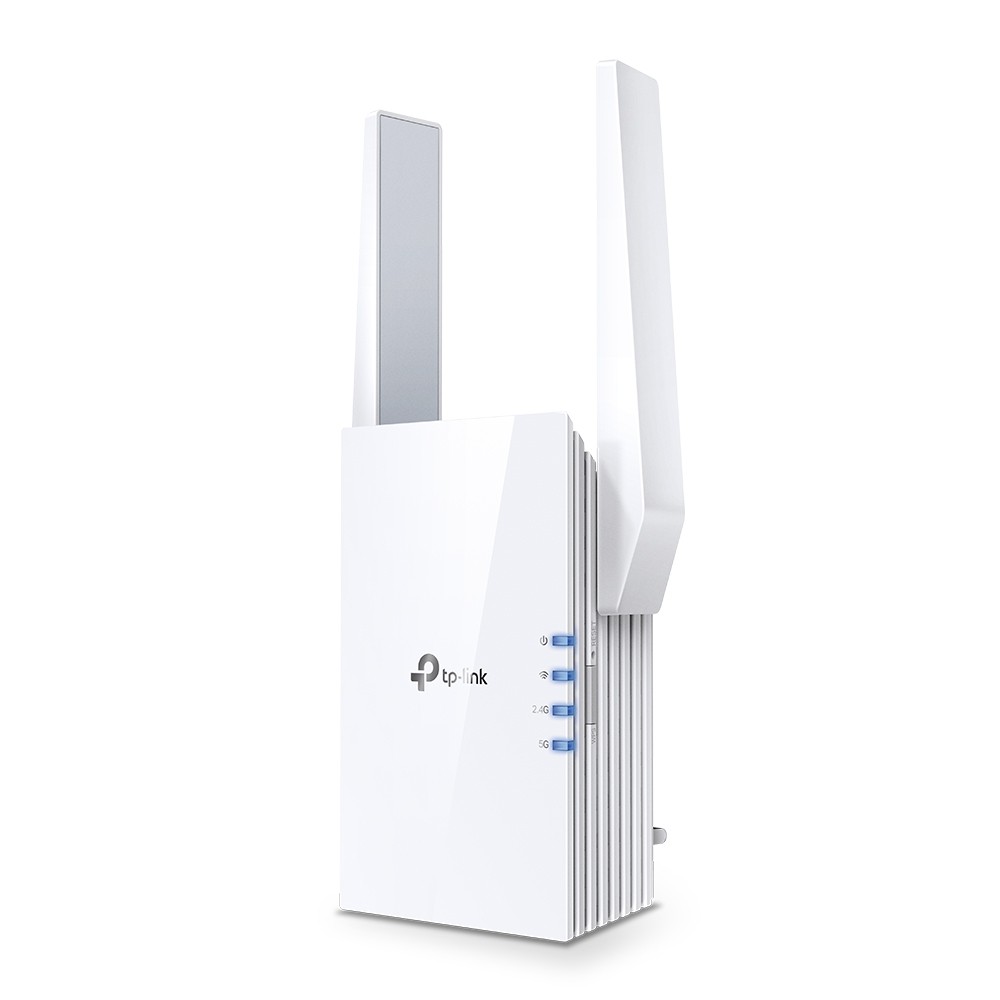

Package Contents Wi-Fi Range Extender RE605X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications FCC, RoHS
